Architecture analysis

RepoDNA infers a repository's architecture from its layout, its package manifests, and the imports in its source files: which modules exist, how they depend on each other, which layers they form, and where the structure is tangled.

repodna architecture
repodna architecture --format json | jq '.modules[] | {name, files, fanIn, fanOut}'

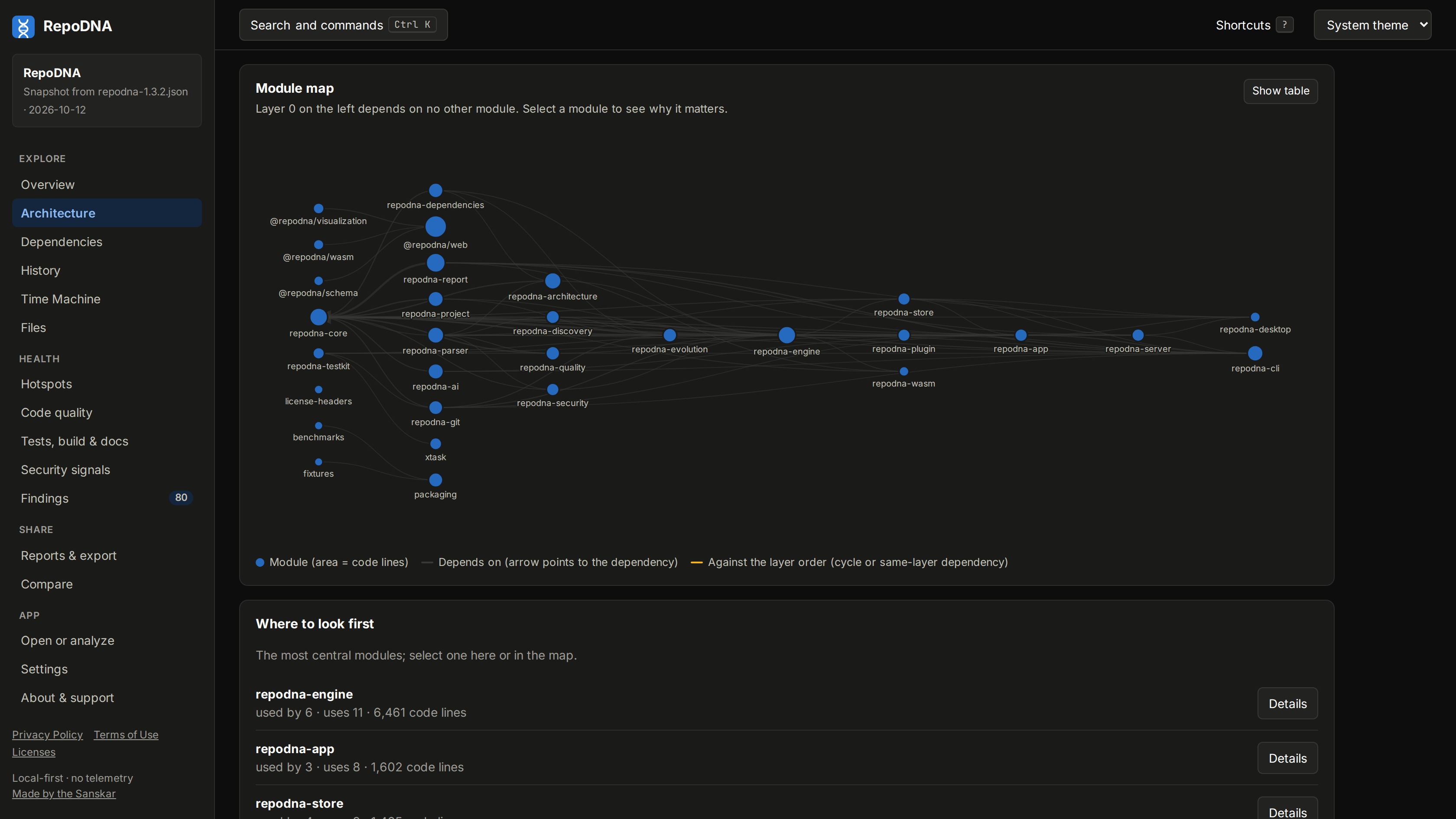

Architecture view of RepoDNA's own analysis

Everything here is static and lexical. Imports computed at run time, dependency injection, reflection, configuration-driven loading, and generated code are invisible, and reports say so in their method notes.

Modules#

Package manifests (a Rust crate, an npm package, a Go module, a Maven module, ...) declare module boundaries directly. Everything else is grouped by directory, following common layout conventions:

Single-child directory chains are collapsed, so src/main/java/com/example/app counts as one step and deep namespace directories do not hide the real components.
Conventional source roots (src, lib, app, ...) are looked into, so src/parser and src/codegen become separate modules instead of one src module.
Grouping directories (packages, apps, crates, cmd, internal, ...) contribute one module per child directory.
A module that holds at least half of all code files (and at least ten files) is split into its subdirectories, at most twice, so one giant module cannot hide the structure.

Each module records its files, code lines, main language, fan-in and fan-out, instability, centrality, layer, entry points, the external packages it uses, and why it matters.

Import resolution#

Imports extracted by the language analyzers are resolved to repository files or to external packages. Resolution understands relative paths, module systems (Rust crates and modules, Python packages, Go modules, JVM packages, C# namespaces, PHP namespaces), workspace package names, and common aliases such as @/. TypeScript type-only imports are ignored, because the compiler erases them. The share of imports that could not be resolved is reported; when it is high, the dependency graph is incomplete, and the architecture.unresolved finding says so.

Graphs and what is derived from them#

Result	How it is computed
File and module dependency edges	Resolved imports; module edges are weighted by the number of imports.
Layers	Modules that depend on nothing are layer 0; every other module is one layer above its highest dependency. Modules in a cycle share a layer.
Cycles	Strongly connected components of the module graph and of the file graph.
Fan-in, fan-out, instability	Incoming and outgoing edges; instability is fan-out ÷ (fan-in + fan-out).
Centrality	Betweenness centrality: how many shortest dependency paths between other modules pass through a module.
Entry points	Files that start execution or define a package's public surface, such as `main` functions, `if __name__ == "__main__"` guards, `bin` targets, and package entry modules.

Architecture style#

The inferred style is a label with a confidence and the signals behind it. Signals are checked in this order, and the first that applies names the style; all of them are listed as evidence:

Style	Signal
Monorepo	Two or more packages, or a workspace declaration.
Layered	Three or more modules in three or more layers, without module cycles.
Modular	At least four modules with dependencies, an average fan-out of three or less, and no module holding half of the code.
Monolithic	One module holds 60% or more of the first-party code.
Flat	Few modules and few files.
Mixed	None of the signals above applies.

Architecture over time#

With the deep profile, RepoDNA reconstructs modules and module dependencies at every Time Machine snapshot by reading the files at that revision, so you can see how the structure evolved. See the Time Machine.

Findings#

architecture.cycle, architecture.file-cycle, architecture.concentration, architecture.centrality, architecture.isolated-module, and architecture.unresolved; see the rules reference.
